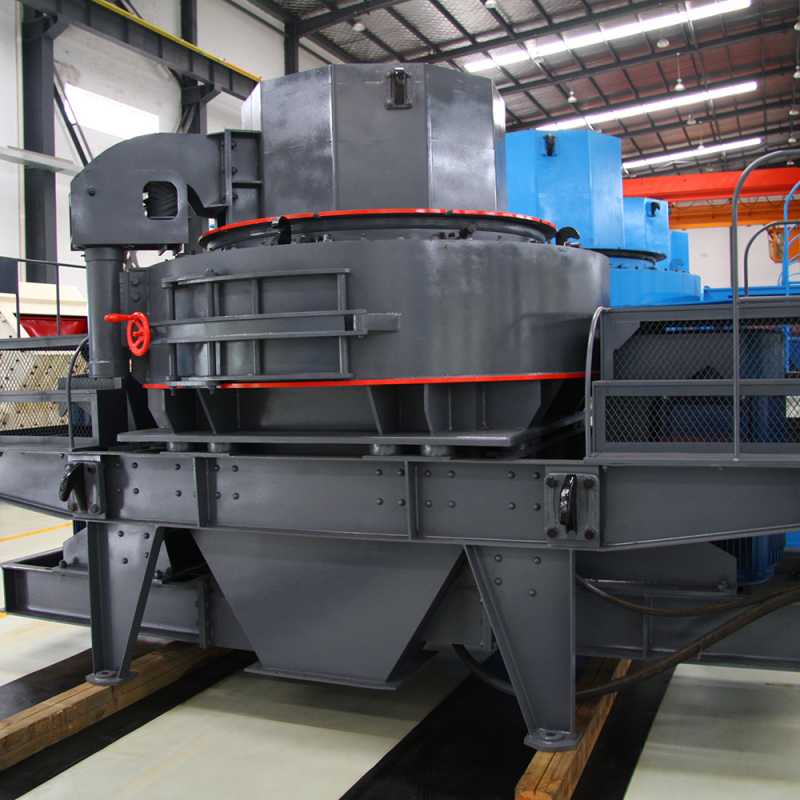

The Vertical Shaft Crusher—also known as the VSI Sand Maker—is designed to process a wide variety of materials, including various rocks, gravel, and river pebbles, transforming them into construction-grade sand that meets diverse particle size specifications. The resulting sand features uniform grain size and high compressive strength, surpassing both natural sand and sand produced by conventional hammer crushers in meeting construction standards and enhancing overall building quality. This equipment is characterized by its reliable performance, rational design, ease of operation, and high operational efficiency.
In the global sand-making and aggregates industry, selecting a trustworthy Chinese supplier of Vertical Shaft Impact (VSI) crushers is a critical factor in ensuring efficient plant operations. Cronus specializes in delivering high-performance VSI crushing solutions, meticulously engineered for the production of premium manufactured sand (M-sand) and for the shaping and processing of railway ballast.
The Superior Engineering of VSI Crushing Technology
The Cronus VSI crusher series employs both "stone-on-stone" and "stone-on-iron" crushing principles to produce aggregate particles with exceptional cubical shapes. Unlike traditional crushing methods, our VSI crushers are specifically designed to achieve the dual objectives of minimizing operational costs while maximizing production capacity when processing hard materials such as basalt, granite, and river pebbles.
VSI Series Vertical Shaft Impact Crusher
| Parameter | VSI-7615 | VSI-8522 | VSI-9532 | VSI-1145 | VSI-1263 |
|---|---|---|---|---|---|
| Capacity (t/h) | 【Capacity range】 | ||||
| Cascade & Central feeding | 120-180 | 200-260 | 300-380 | 500-640 | 454-486 |
| Full central feeding | 60-90 | 100-130 | 150-190 | 250-360 | 545-583 |
| Max feed size (mm) | |||||
| Soft material | <35 | <40 | <45 | <50 | <60 |
| Hard material | <30 | <35 | <40 | <45 | <50 |
| Rotor speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1100-1310 | 900-1200 |
| Dual motor power (kW) | 75×2 | 110×2 | 160×2 | 220×2 | 315×2 |
| Max dimensions (L×W×H) mm | 3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5100×2790×3320 | 5700×2980×4190 |
| Power supply | 380V; 50Hz | ||||
| Vibration sensor range | 0.1 – 20 mm/s (continuously adjustable) | ||||
| Hydraulic lubrication station | Dual oil pump system with integrated protection | ||||
| Dual oil pump motor power (kW) | 2 × 0.31 | ||||
| Safety protection | Dual oil pump redundancy ensures oil supply; automatic shutdown upon oil flow/pressure loss; water cooling; electric heater for low-temperature startup | ||||
| Dimensions (mm) | 820 × 520 × 1270 | ||||
| Tank heater power (kW) | 2 | ||||
Cronus VSI Vertical Shaft Impact Crusher: Key Features
As a professional Chinese supplier of vertical shaft impact crushers, Cronus offers machines characterized by the following features:
High-Efficiency Sand Making
Utilizing a high-speed rotating rotor and impact plates, the machine efficiently crushes and grinds materials of varying hardness to produce high-quality manufactured sand.
Versatile Applications
Capable of processing ores of diverse hardness levels and types, the equipment is widely utilized in various sectors, including highway construction, railway engineering, and water conservancy projects.
Adjustable Discharge Granularity
By adjusting the rotor speed and the size of the discharge opening, operators can precisely control the particle size of the resulting fine-crushed materials.
Simple Structure and Easy Maintenance
Featuring a simple structural design, the equipment is easy to operate and maintain, thereby minimizing downtime and significantly boosting production efficiency.
Why Choose Cronus as Your Supplier for Vertical Shaft Impact Crushers?
Cronus is more than just an equipment manufacturer; we are your strategic partner in the fields of industrial grinding and crushing. Based in China's premier industrial manufacturing hub, we leverage advanced CNC machining technologies and a rigorous ISO-certified quality control system to ensure that every Vertical Shaft Impact Crusher we produce meets international-class standards. Furthermore, our robust global logistics network guarantees the timely delivery of both equipment and genuine spare parts.
For a detailed project quotation, please contact the Cronus engineering and technical team.
