Diabase is a shallow diabase with the same composition as gabbro, and is a high-quality building material. According to the difference in secondary minerals, it can be divided into olive diabase, quartz diabase, etc. It can be used as a building stone or craft stone, and is a raw material for casting. Those with uniform texture and no cracks can be used as stone raw materials, and fine-grained ones are particularly preferred.
| Name: | diabase |
|---|---|
| Main components: | pyroxene and basic feldspar |
| The structure: | often diabase or subdiabase |
| Occurrence: | in the form of a stock |
| Definition: | basic shallow intrusive rock |
Diabase crushing sand production line process
Coarse crushing
Raw materials: large pieces of diabase material.
Process: uniformly fed into the jaw crusher for coarse crushing through a vibrating feeder.
Equipment: jaw crusher.
Result: the coarsely crushed material is screened by a vibrating screen, and the larger particles are sent to the cone crusher by a belt conveyor for medium and fine crushing.
Medium and fine crushing
Raw materials: qualified materials after coarse crushing.
Process: enter the cone crusher for medium and fine crushing.
Equipment: cone crusher.
Result: the medium and fine crushed material is screened by a circular vibrating screen, and the material is returned to the cone crusher for further crushing, forming a closed loop to ensure that the material reaches the required particle size.
Sand making
Raw materials: diabase particles after medium and fine crushing.
Process: sent to the sand making machine for further crushing and shaping.
Equipment: sand making machine.
Result: the material will be returned to the sand making machine for further fine crushing. The material is sent to the circular vibrating screen for final screening and packaged according to the particle size. If cleaner diabase sand is needed, a sand washer can be used to clean it to remove dirt and other impurities in the sand.
Finished product
Specifications: According to the screening results, finished sand of different particle sizes can be obtained.

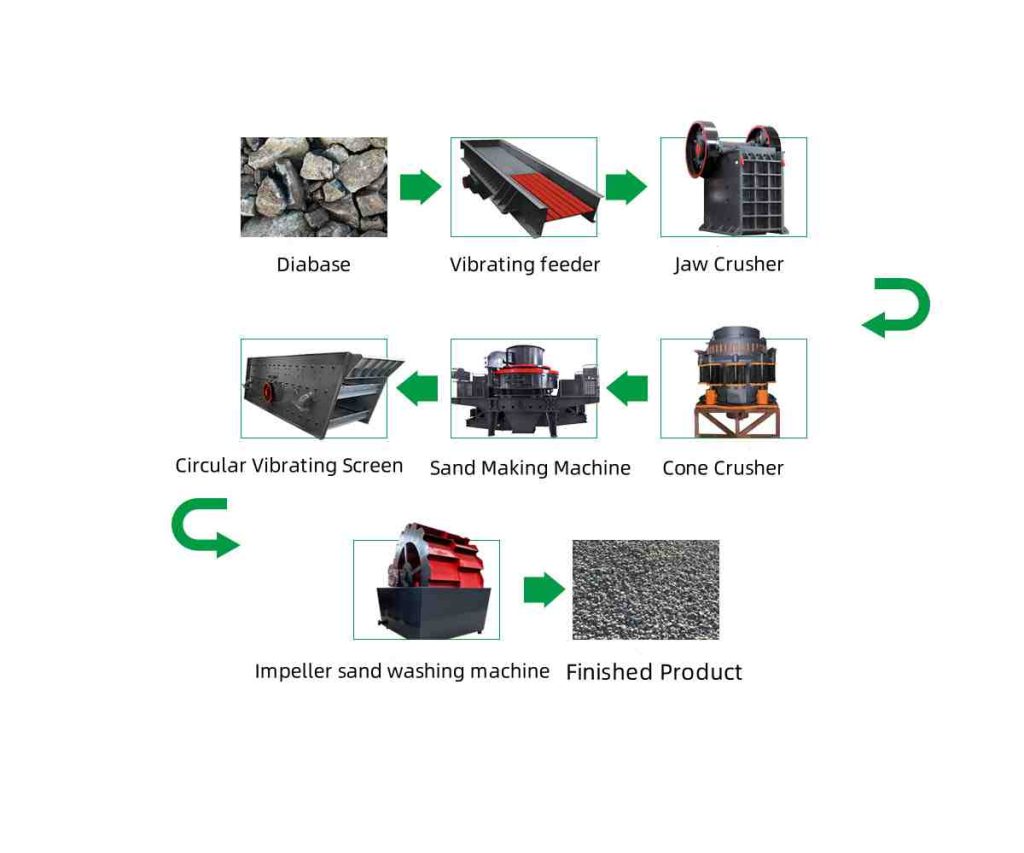

Diabase Crushing and Sand Making Flowchart
Technical Description
This flow chart is designed based on the specific parameters provided by the customer and is only used as a reference during the construction process.
In actual construction operations, corresponding adjustments need to be made according to the specific conditions of the on-site terrain.
The mud content of the materials used in the construction must be controlled below 10%, because the mud content will have a significant impact on production efficiency, equipment performance and the entire process.
Cronus can provide personalized process design solutions and technical support based on the specific needs and installation environment of customers, and can customize non-standard supporting components.
