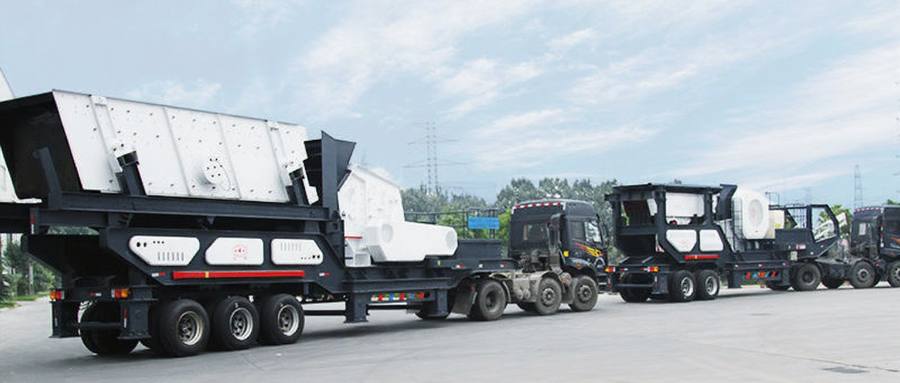

With the rapid development of the sand and gravel aggregate industry, the choice of crushing equipment has become increasingly diverse. In addition to traditional fixed production lines, mobile crushers are becoming the preferred equipment of increasing numbers due to their flexibility, diverse configurations, and energy-saving and environmentally friendly features. Following our previous two articles on the working principles and mainframe configurations of mobile crushers, today we will take a closer look at their performance characteristics.
I.Performance Characteristics of Mobile Crusher
Compact and Optimized Design
The overall size and compact structure of the mobile crusher make it easily adaptable to narrow work sites and offer greater mobility.
Adaptable to Complex Working Conditions
The mobile crusher boasts strong gradeability and can operate stably on rugged roads and in complex environments, meeting the diverse crushing equipment requirements of projects such as mines, hydropower stations, and coal mines.
High Efficiency and Energy Saving
Compared to traditional equipment, fuel savings can reach up to 25%, significantly reducing operating costs.
Self-Powered System
The mobile crusher is equipped with an independent power unit, enabling rapid site transitions without the need for additional power, resulting in enhanced mobility.
Wide Range of Applications
Mobile crushers are not only suitable for ore crushing but also assist in construction waste recycling, earthwork processing, and urban infrastructure development, providing strong support for resource reuse and green development.
II. Advantages of Mobile Crusher
Compared to fixed production lines, mobile crushers have significant advantages:
- Flexibility: They can be deployed at any time according to project needs, reducing transportation costs.
- Customizable Configuration: Users can flexibly choose a jaw crusher, cone crusher, impact crusher, or other main crushing units to meet different crushing requirements, enabling the crushing of a wide range of materials.
- Reduced Infrastructure Investment: No complex civil engineering infrastructure is required, resulting in a short installation period and rapid commissioning.
- Wide Range of Applications: They perform well in a variety of applications, including sand and gravel aggregates, mining, and construction waste treatment.
III. Working Principle of Mobile Crusher
Large materials are evenly transported into the mobile crusher through a feeder. The jaw crusher performs the initial crushing process, and the material is then conveyed by a conveyor to the impact crusher for secondary processing.
The crushed material is screened by a vibrating screen. Material that meets the crushing requirements is discharged by a conveyor, while material that does not meet the requirements is re-crushed in the impact crusher.
The circular vibrating screen forms a closed-circuit system, achieving continuous crushing. The finished material is discharged by a conveyor, continuing the crushing process.
Equipment Specifications Comparison Table
| Specifications | WT160SC | WT250SC | WT300HPM | WT400HPM |
|---|---|---|---|---|
| Transport Dimensions | ||||
| Length | 16800mm | 19000mm | 19000mm | 19500mm |
| Width | 3500mm | 3600mm | 3900mm | 3900mm |
| Height | 3700mm | 3800mm | 3800mm | 3800mm |
| Weight | 50t | 60t | 55t | 65t |
| Loading Conveyor | ||||
| Hopper Capacity | 3m³ | 3m³ | 3m³ | 3m³ |
| Loading Height | 2600mm | 2600mm | 2600mm | 2800mm |
| Loading Width | 1900mm | 1900mm | 1900mm | 1900mm |
| Dimensions (W×L) | 1000×6300mm | 1000×6300mm | 1000×6300mm | 1200×6500mm |
| Crusher | ||||
| Model | SC160 | SC250 | HP300 | HP400 |
| Feed Inlet | 75-360mm | 75-450mm | 60-200mm | 68-280mm |
| Maximum Feed Inlet | 360mm | 450mm | 200mm | 280mm |
| Minimum Discharge Inlet | 8-25mm | 8-35mm | 8-45mm | 8-51mm |
| Main Conveyor | ||||
| Dimensions (W×L) | 1000×9000mm | 1000×10000mm | 1000×10000mm | 1000×11000mm |
| Discharge Height | 3100mm | 3490mm | 3490mm | 3690mm |
| Return Screen | ||||
| Discharge Height | 4200mm | 4200mm | 4400mm | 4400mm |
| Model | HX1536 | HX1536 | HX1536 | HX1536 |
| Screen Specifications | 1500×3600mm | 1500×3600mm | 1500×3600mm | 1500×3600mm |
| Screen Bottom Conveyor | ||||
| Dimensions (W×L) | 1000×5600mm | 1000×5600mm | 1000×5600mm | 1000×6500mm |
| Discharge Height | 3020mm | 3020mm | 3020mm | 3300mm |
| Screen Head Conveyor | ||||
| Dimensions (W×L) | 650×2100mm | 650×2100mm | 650×2100mm | 650×2100mm |
| Discharge Height | 1370mm | 1370mm | 1370mm | 1370mm |
| Return Conveyor | ||||
| Dimensions (W×L) | 650×10000mm | 650×10000mm | 650×11000mm | 650×11000mm |
| Discharge Height | 4200mm | 4200mm | 4400mm | 4400mm |
| Power System | ||||
| Diesel Engine Power | 96kW | 132kW | 106kW | 132kW |
| Equipment Power | 207.12kW | 297.12kW | 267.12kW | 362.12kW |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins |
| Control System | ||||
| Control Mode | Wired/Wireless (Optional) | Wired/Wireless (Optional) | Wired/Wireless (Optional) | Wired/Wireless (Optional) |
IV.Mobile Crusher Manufacturer Direct Sales, Affordable Prices
As for mobile crusher prices, there's no specific figure, and prices vary, depending on the equipment configuration and model. Cronus, a large-scale mobile crusher manufacturer, offers a comprehensive range of models in stock and can customize investment plans for you free of charge.
For specific mobile crusher prices, please feel free to contact us online. This month, we're offering multiple discounts, with dedicated equipment managers providing detailed information. Cronus, a domestic manufacturer with 40 years of experience in direct sales of mining equipment, maintains a more stringent quality inspection process, eliminating numerous import and export tariffs, transportation costs, and other expenses, making it more economical overall.
