High-mobility crushing solution for mining, construction, and aggregate production. Engineered for flexibility, efficiency, and on-site processing to reduce transportation costs and infrastructure investment. Key Features & Advantages Superior Mobility Adapts to complex terrain like mines, mountains, and construction sites. Can be relocated without fixed infrastructure, ideal for frequently changing job sites. High-Efficiency Crushing The core […]
Fineness:
Adjustable, depending on the screen configuration.
Capacity:
35-150 t/h (depending on the model).
Scene:
Construction engineering, highway and railway engineering, water conservancy projects, mining operations.
High-mobility crushing solution for mining, construction, and aggregate production. Engineered for flexibility, efficiency, and on-site processing to reduce transportation costs and infrastructure investment.
Key Features & Advantages
Superior Mobility
Adapts to complex terrain like mines, mountains, and construction sites. Can be relocated without fixed infrastructure, ideal for frequently changing job sites.
High-Efficiency Crushing
The core hammer crusher delivers excellent crushing ratio and capacity. Its robust design ensures effective size reduction to meet various gradation requirements.
Integrated Design

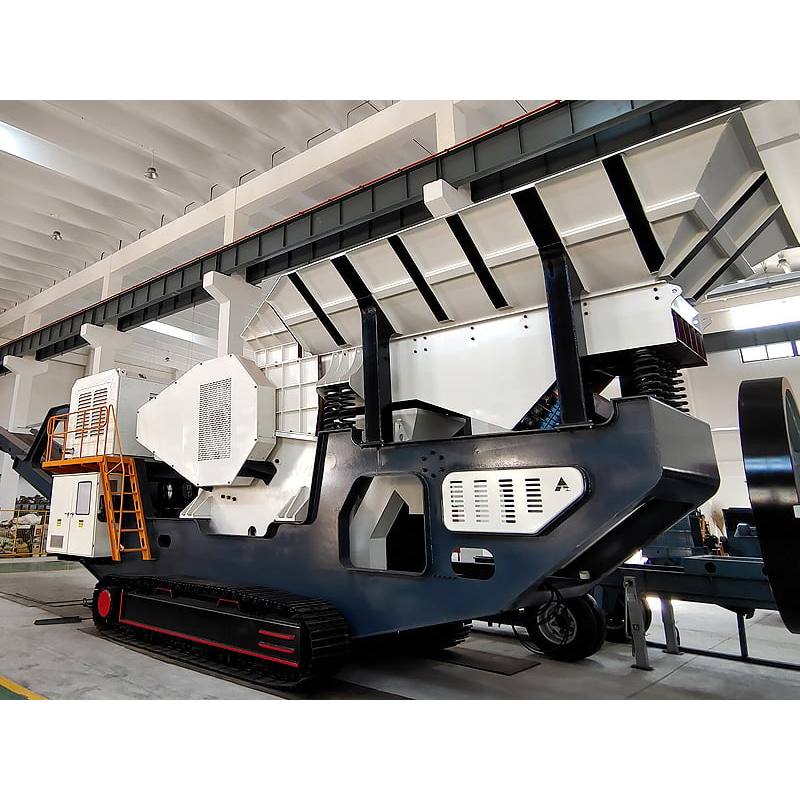

Crusher, feeder, conveyor, and screen are integrated on a single chassis (tracked or wheeled). Simplifies setup, reduces transportation time, and boosts operational efficiency.
Eco-Friendly & Energy Saving
Incorporates advanced crushing technology, hydraulic drives, and intelligent control systems to minimize energy consumption and environmental impact.
Working Principle
Feeding: Material is uniformly fed into the hammer crusher via a vibrating or belt feeder.
Crushing: Material is shattered by high-speed rotating hammers and impacted against liners until it reaches the desired size.
Screening: Crushed material is conveyed to a vibrating screen. Oversize material is returned for re-crushing; finished product is separated.
Conveying: A belt conveyor system transports material between feeder, crusher, screen, and final stockpile.
Control & Adjustment: An automated control system monitors operation in real-time, allowing adjustment of feed rate, crusher parameters, and conveyor speed for optimal output.
Mobility: The entire plant is mounted on a mobile chassis, enabling self-propelled movement across rough terrain and quick redeployment.
Technical Specifications
Model
Vibrating Screen
Hammer Crusher Model
Main Conveyor
Capacity (t/h)
Motor Power (kW)
Y3S1548Y55
3YA1548
PC1250×1250
B500×7M
35 - 65
180
Y3S1848Y90
3YA1848
PC1400×1400
B650×7M
50 - 100
280
Y3S2160Y220
3YA2160
PC1600×1600
B800×8M
100 - 150
480
Specifications are subject to change based on configuration and material properties.
Specifications are subject to change based on configuration and material properties.
* The above data is for reference only. For specific information, please refer to the actual product or product manual.
