PF series impact crushers are mainly used in metallurgy, mining, cement, chemical industry, refractory materials and ceramics and other industrial sectors, as well as highway construction, water conservancy projects, building gravel, machine-made sand processing and other fields.

PF Impact Crusher breaks materials with impact force. When working, driven by a motor, the rotor rotates at a high speed. When materials enter the working area of hammer, they are crushed under the high-speed shock. Then broken materials are thrown onto the lining plate for another crushing. Finally, qualified materials are discharged from the opening. Adjusting the gap between the impact rack and rotor rack can change the granularity and shape of finished products.

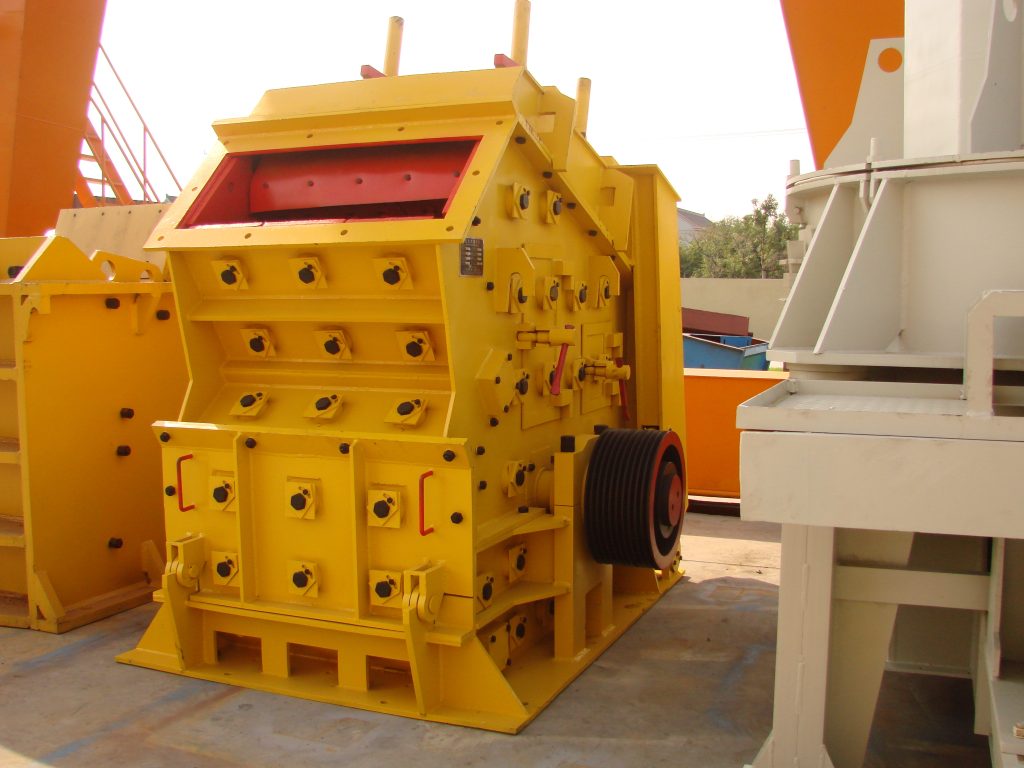

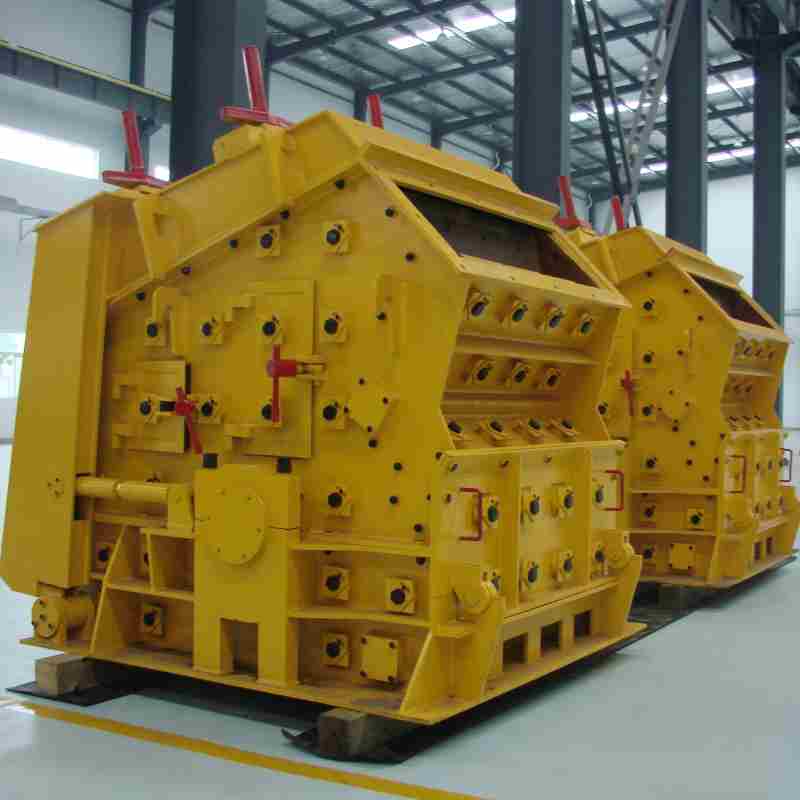

Impact Crusher pictures

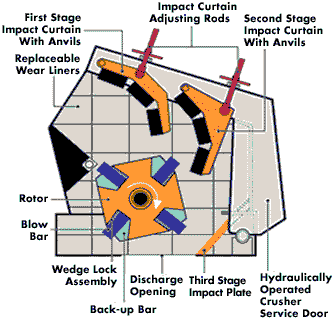

Internal structural features

The triple impact plate structure increases the number of material impacts, reduces hard extrusion and friction, reduces hammer head loss, and extends the service life of wear-resistant parts.

The gap between the impact plate and the hammer head can be easily adjusted by adjusting the bolts to effectively control the particle size of the discharge.

The PF Impact Crusher cover opening is equipped with a hydraulic device, making maintenance more convenient.

Impact Crusher Product Parameters

Model	Rotor Size* length (mm)	Feed Opening Size (mm)	Max. Feeding Size (mm)s	Capacity (t/h)	Motor Power (kw)	Overall Dimension (mm)
PF-1007	Φ1000×700	400×730	300	35-50	55	2400×1558×2660
PF1010	Φ1000×1050	400×1080	350	50-80	4-75	2455×2086×2800
PF1210	Φ1250×1050	400×1080	350	60-120	6-110	2590×2050×2800
PF1214	Φ1250×1400	400×1430	350	80-160	6-132	2590×2400×2810
PF1315	Φ1300×1500	860×1520	350	120-260	6-200	2930×2760×3050
PF-1515	Φ1500×1500	1145×1520	≤500	220-280	280kw	2690×2049×2698
PF-1520	Φ1520×2000	1245×2050	700	300-550	315-440	3581×3560×3865

Impact Crusher Applicable Materials

Performance advantages

The finely designed rotor and cavity type, speed and power are reasonably matched to meet the different application options of coarse crushing, medium and fine crushing and material recovery.

The sturdy heavy rotor structure improves the equipment's processing capacity and crushing ratio; the high-quality welded structure ensures that the machine can withstand large impacts and obtain good crushing effects.

The ship-shaped plate hammer and the reliable locking structure have good impact resistance and wear resistance and maintain stable discharge particle size.

The large-scale use of new high-wear-resistant materials reduces the wear of wear parts, extends the replacement cycle, and saves costs.

Hydraulic cover opening and hydraulic auxiliary adjustment of the gap between the impact plate and the plate hammer shorten downtime.

The equipment is equipped with a variety of safety locking devices to improve safety performance while reducing labor intensity.

The optional third impact rack makes the product particle shape more beautiful.
