GPD single cylinder cone crusher is a modern crushing equipment, which adopts single cylinder hydraulic system to adjust and control the crushing chamber. It has a simple and compact design, and is composed of basic components such as main shaft, crushing cone and adjustment sleeve, which is designed to efficiently crush all kinds of medium […]

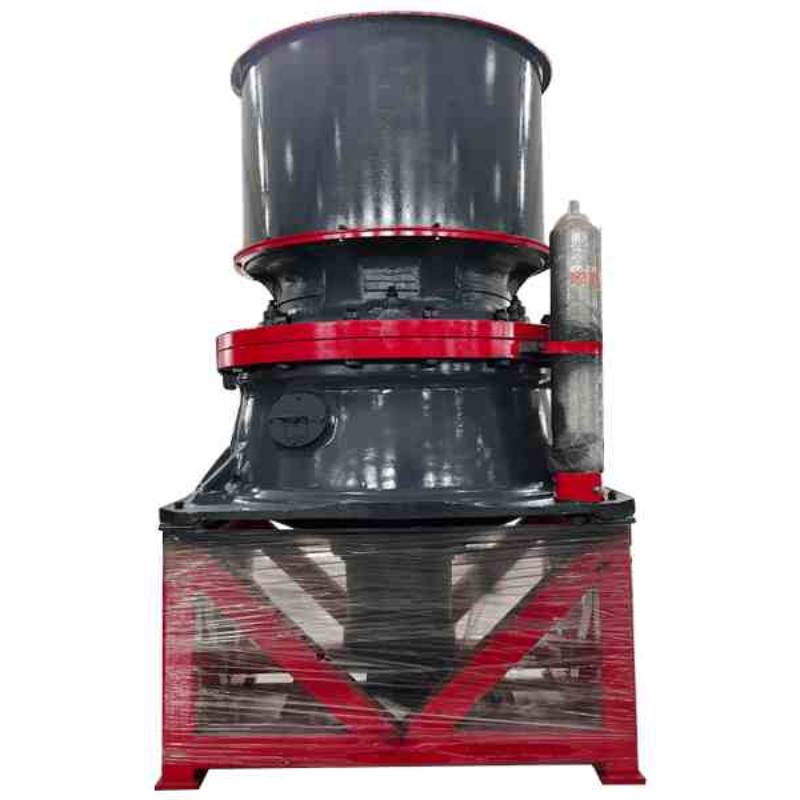

GPD single cylinder cone crusher is a modern crushing equipment, which adopts single cylinder hydraulic system to adjust and control the crushing chamber. It has a simple and compact design, and is composed of basic components such as main shaft, crushing cone and adjustment sleeve, which is designed to efficiently crush all kinds of medium hardness and above ores and rocks. The equipment has a reasonable structure and is easy to operate. It is suitable for occasions in mining, construction and other industries that require stable and efficient crushing solutions.
Production capacity: 40-1000 (t/h)
Feed size: 70-300 (mm)
Applicable materials: iron ore, copper ore, zinc ore, limestone, etc.
Application areas: mining, construction, road construction, chemical industry, etc.
Single-cylinder hydraulic adjustment
The GPD single-cylinder hydraulic system is used to adjust and control the crushing chamber, which can quickly and accurately adjust the size and shape of the crushing chamber to meet the crushing needs of different materials.
Stable and reliable operation
The GPD single-cylinder cone crusher has stable operation, good stability and reliability, suitable for long-term continuous operation, and ensures the stability and continuity of the production process.
Simple and compact structure
The single-cylinder cone crusher has a simple structure and consists of basic components such as the main shaft, crushing cone and adjustment sleeve. The design is compact, easy to manufacture and maintain, and improves the reliability and operation efficiency of the equipment.
Efficient crushing capacity
Through the optimized crushing chamber design and hydraulic adjustment system, efficient crushing operations are achieved, which can handle various types of medium hardness and above ores and rocks, and improve production efficiency.
Feeding and Distribution: The material enters the crusher through the feed port and is distributed to the crushing chamber by the feed system.
Crushing and Crushing: Under the rotation of the eccentric shaft, the material is squeezed by the crushing cone and rubbed by the crushing shell to complete the primary crushing and secondary crushing, and the large pieces of material are gradually crushed into the required small particles.
Single-cylinder hydraulic adjustment: The size and shape of the crushing chamber are adjusted by a single-cylinder hydraulic system. By controlling the piston position of the hydraulic cylinder, the position of the crushing cone is adjusted to meet the requirements of materials of different particle sizes and shapes.
Finished product discharge: The crushed material is discharged through the discharge port to form the required finished product particles. The size of the discharge port can be accurately controlled by the hydraulic system to ensure the uniformity and quality of the finished product.
Sealing and dustproof: The equipment adopts an effective sealing device to prevent dust leakage during the crushing process and keep the operating environment clean and safe.
Stable operation and maintenance: During the entire working process, the GPD single-cylinder cone crusher has a stable structure and well-designed parts, which can operate stably for a long time. Regular maintenance and care of hydraulic systems and other key components can ensure efficient operation and long life of the equipment.
| Parameters of Single Cylinder Cone Crusher | |||
| Model | GDP 300 | GDP 500 | GDP 800 |
|---|---|---|---|
| Cone base diameter (mm) | 1200 | 1650 | 2200 |
| Feeding Size (mm) | 220 | 300 | 350 |
| 150 | 230 | 290 | |
| 80 | 100 | 130 | |
| Discharge (mm) | 20-50 | 25-60 | 30-60 |
| 9-25 | 13-30 | 15-35 | |
| 5-13 | 7-14 | 8-15 | |
| Maximum feeding size at the cone bottom (mm) | 165 | 240 | 300 |
| 130 | 195 | 230 | |
| 70 | 85 | 110 | |
| Capacity (t/h) | 90-260 | 210-480 | 600-1000 |
| 45-120 | 128-280 | 350-680 | |
| 40-100 | 100-200 | 260-400 | |
| Motor Model | Y315M2-6 | Y315M2-6 | Y400-6 |
| Power (kW) | 220 | 315 | 400 |
| Voltage (V) | 380 | 380 | 380 |
| Rotation speed (r/min) | 300 | 250 | 160 |
| Lubrication station capacity (L/min) | 63 | 125 | 250 |
| Dimensions H (m) | 3.14 | 4.1 | 5.4 |
| 3.1 | 4.04 | 5.4 | |
| 3.06 | 3.99 | 5.4 | |
| Dimensions L (m) | 3.95 | 3.37 | 4.7 |
| Dimensions W (m) | 1.9 | 2.6 | 3.6 |
| Weight (t) | 19 | 37.1 | 77.9 |
| 18.6 | 37 | 77.1 | |
| 18.6 | 36.9 | 76.8 | |
