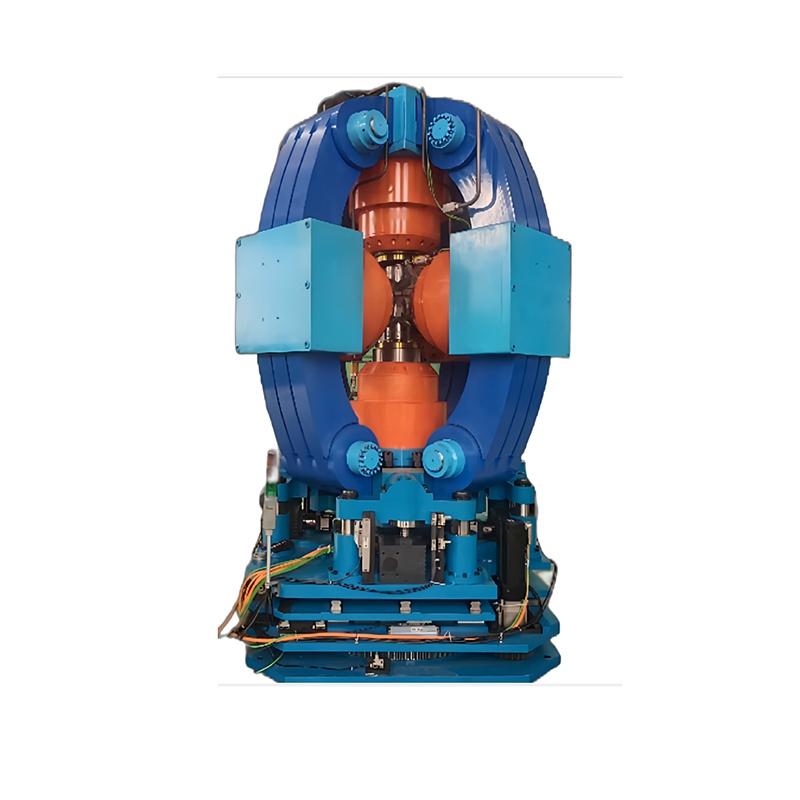

Product Overview of HPHT Cubic Press Machine

The HPHT Cubic Press Machine, also known as six-face hydraulic press, is the core high-temperature high-pressure equipment to synthesize superhard materials including industrial diamond, lab-grown diamond, cubic boron nitride (CBN) and superhard cutting tools.

Shanghai Cronus independently develops two complete series of HPHT Cubic Press Machine: cast type and welded-forged type. The cylinder diameter covers full range Φ420mm to Φ1500mm, matching small, medium and large production lines with different output capacity and investment budgets.

All HPHT Cubic Press Machine adopt unified design pressure 110MPa and rated working pressure 95MPa. We provide a full 5-year warranty for all units running under pressure ≤90MPa. Stable pressure output and uniform high-temperature field support stable mass production of superhard materials, widely adopted by diamond factories, new material research labs and tool manufacturers worldwide.

Besides standard models GY420, GY560, GY650, GY800, GY950, GY1200, GY1500, welded-forged upgraded versions GY650D, GY850D, GY950D, GY1000D, GY1100D, we also supply customized models GY460, GY500, GY700, GY750, GY1050. You can contact our sales team to get full parameter sheets, technical manuals and official quotation.

Upgraded Advantages of Welded-Forged HPHT Cubic Press Machine

Compared with traditional cast cubic press machine, our welded-forged HPHT Cubic Press Machine upgrades overall structure, manufacturing process and service life to cut long-term production cost for clients.

Finite element simulation and intelligent force verification form a more scientific whole frame structure. Segmented full forging plus surfacing connection technology greatly lifts integral structural strength. Exclusive overall heat treatment for hinge beams optimizes comprehensive mechanical performance including fatigue strength, yield strength and tensile strength.

The integrated structure of working cylinder and hinge beam makes the whole machine compact with low running noise, fitting compact factory layout. Under extreme HPHT working conditions, the welded-forged cubic press generates tiny and even deformation, delivering consistent pressure field during crystal growth. It effectively raises single furnace output, extends machine service cycle and reduces maintenance expense, bringing higher production efficiency and better profit ratio.

Our welded-forged HPHT Cubic Press Machine has been applied in authoritative institutes including Yanshan University High Pressure Research Center, Southern University of Science and Technology and Chongqing Chengxuan New Materials. All test indicators outperform conventional cast steel cubic press machines and lead the large-cavity HPHT equipment market.

Cast HPHT Cubic Press Machine Parameter Table

Factory Manufacturing & Strict Quality Control for HPHT Cubic Press Machine

As a professional HPHT Cubic Press Machine manufacturer with 40 years production experience, Shanghai Cronus builds full self-owned processing and testing workshop to control quality from raw material to finished machine delivery.

We equip independent mechanics laboratory, complete heat treatment workshop, large CNC vertical lathes and high-precision CNC machine tools for blank processing. Full precision testing procedures cover metallographic analysis, ultrasonic flaw detection, hardness inspection and three-coordinate articulated arm measurement. Haukener mirror finishing technology further improves the precision and wear resistance of key pressure components.

We own 21 national patents, EU CE certification and ISO9001 quality system certification. As China’s first developer of true triaxial HPHT Cubic Press Machine, we are the third enterprise globally mastering this core technology after Germany and Japan. Our products have been exported to more than 20 countries such as USA, Japan, South Korea, Russia, Germany, Ukraine, Iran and India, with over 4000 sets sold globally.

One-Stop Supporting Service & Superhard Material Matching Products

Based on mature HPHT Cubic Press Machine technology, Shanghai Cronus supports customized high temperature high-pressure experiment service for new material research institutions. We also supply complete supporting superhard material finished products to form a full industrial chain solution for clients.

Our matching products cover industrial diamond, lab-grown rough diamond, CBN & PCBN cutting tools, diamond wire saws, PDC geological drill bits, diamond roller bits and PDC composite sheets for tunnel boring machines. Clients can purchase HPHT synthesis equipment and supporting superhard material tools from one single supplier to simplify procurement management.

Why Choose Shanghai Cronus HPHT Cubic Press Machine as Your Production Equipment

We are a national high-tech enterprise and key export enterprise in Guangxi, standing as standing director unit of China Superhard Materials Industry Association. The technical performance of our HPHT Cubic Press Machine has been identified as international advanced level by expert group led by CAS academicians and Yangtze scholars from Guangxi Department of Science and Technology.

HPHT cubic press manufacturing ensures stable equipment performance and mature after-sales support. Full series models cover all production demands, with flexible budget options for startup factories and large-scale diamond manufacturers. Global after-sales service network provides installation guidance, operation training and spare parts supply for overseas clients.
